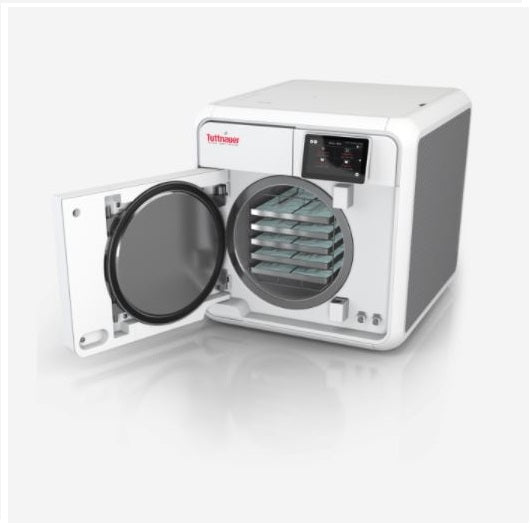

T-EDGE 10 CLASS B AUTOCLAVE – 220V & 110V

T-EDGE 10 Class B Autoclave – Pre/Post Vacuum, Fast & Reliable Sterilization

The T-EDGE 10 Class B Autoclave is a high-performance, pre/post vacuum sterilizer designed to meet the most stringent ANSI/AAMI ST55 sterilization standards. Perfect for dental clinics, medical offices, and laboratories, this autoclave combines fast cycles, optimal chamber capacity, and advanced smart features for efficient and reliable sterilization.

With a 36-minute wrapped instrument cycle including drying, the T-EDGE 10 ensures rapid turnaround without compromising safety or sterilization quality. Its spacious chamber (18" deep × 10" diameter, 23L volume) accommodates more than 80% chamber capacity with extra-long trays, allowing for convenient loading and smooth workflow.

Equipped with remote Wi-Fi monitoring, the autoclave can be accessed and managed via smartphone or tablet, while the user-friendly touchscreen control panel provides full control over programs, cycle times, water levels, and operational status. Its automatic water filling and drain connection ensures effortless maintenance.

Key Features:

• Class B sterilizer with pre/post vacuum for superior sterilization

• Fast 36-minute wrapped instrument cycle including drying

• Spacious 23L chamber (18" deep × 10" diameter)

• Optimal chamber capacity with extra-long trays for efficient loading

• User-friendly touchscreen panel displays programs, cycle times, and water levels

• Remote Wi-Fi connectivity for monitoring via smartphone or tablet

• Automatic water filling & drain connection for easy maintenance

• Standard cassette capacity: 3 full + 3 half trays

• Convenient open-door loading at 110º without obstruction



  Specifications:

• Model: T-EDGE 10 Class B Autoclave

• Chamber Volume: 23L / 6GA

• Overall Dimensions: 21.1" × 19" × 19.7"

• Connections: 1 Ethernet port, 4 USB ports, Wi-Fi

• Voltage Options: 220V / 50–60Hz or 110V / 60Hz

• Weight: 117 lbs

• Supplied Accessories: Drain tube & tray holder
